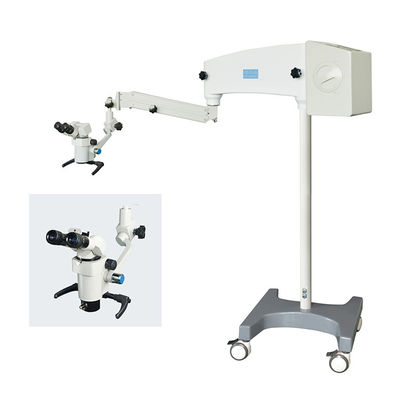

Good Quality Dental operating microscope YSOM-X-12A Operating Microscope For Dentist

Product Description

Details of Dental Operating Microscope

The YSOM-X-12A Opreating microscope is an ENT and dental operating microscope.

It is fit for ENT and dental surgery.

Continuously zoom. The change of zoom is smooth.

Rapid focusing on small increases, the retarded focusing on great increases.

Two groups of illumination. Continously brightness control.

Turning of extension hand around the axis.

The support can keep balance at any plance.

Automatic balancing of the microscope.

Multifunctional Control panel on the support.

Optional modules: Camera and video system

Model	YSOM-X-12A
Optics system	Apochromatic optical system
Eyepiece	Main eyepiece and assistant eyepiece: 10X wide field eyepiece Dioptric adjustment: +6/-6 IPD adjustment: 55mm ~ 75mm
View head	90°rotating
Objective	Focal length: 200m/250mm/300mm Zoom times: 5X-20X Continuously zoom Sight range:8-65mm
Working distance	More than 250mm
Light source	2 groups cold light illumination. 15V/150W OSRAM halogen lamp. Brightness adjustable. Coaxial Light brightness: ≥50000LX
Extension hand	Horizon: 1075mm in radius. Vertical: 200mm
Focusing	Focusing speed: ≤1.5mm/s Focusing adjusting range: ≥40mm.
Height adjust	1.8-2m
Power supply	AC220V/50Hz, AC110V/60Hz

Good Quality Acrylic Dental Microscope YSOM-X-12A Working Working Microscope For Dentist
