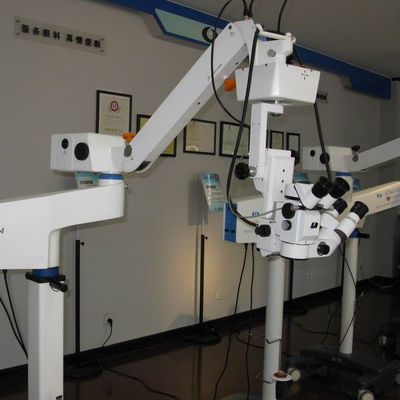

Surgical Microscope

SOM-2000C

Compact structure and complete functions.

Characteristics:
• 4×~24×zoom magnifications, horizontal movement of foot control and fine focusing.
• Germany imported Schott optics ensure the sharp image and even field of view.
• Applied in operations and fine examinations of ophthalmology, ENT , surgery, etc.

Specifications:
Eyepiece Magnification	12.5×/16B
Diopter Adjustment	±6D
Pupil Distance	50mm~75mm
Visual Angle of Eyepiece	30°~90°(Eyepiece moving between 0°~180°is optional )
Magnifications for Main Microscope	4×~24×(41.5mm~7.5mm)
(Diameter of Field)	4×~24×(41.5mm~7.5mm)
Objective Lens	f=200(f=175/250/300 is optional)
Maximal Resolution	119LP/mm
Working Distance	190mm
Illumination Source	15V/150W, Medical Cold-reflection Halogen Bulb
Illumination Type	6°+0° Coaxial Illumination
Coaxial Illumination	≥40, 000lx
Filters	Orange filter(cobalt filter is optional)
Reaching Radius of Arm	1020mm
Adjustable Vertical Range	250mm
Fine Focusuing Range and Speed	30mm, ≤2mm/s
Speed for X-Y and Range	50mm×50mm, ≤2mm/s

Professional Softwares for video recording and editing

Patients' database management

Surgery trolley, for mounting monitor and camera control unit
